What is it?
Esparagus HiFi MediaLink is a handy low cost media device, that will upgrade your legacy audio system with cutting-edge internet streaming capabilities and enhance your audio experience.
Our Crowd Supply campaign for backing the manufacturing of Esparagus series boards is currently underway. If you have any interest, please consider subscribing to receive updates on the campaign.
Motivation
I did few audio projects in the past, some using ESP32, some using larger Orange Pi and Raspberry Pi devices. Each has its pros and cons, and each iteration I’m trying to focus on the details that were working best for me, while actually using them.
What I like about ESP32 is how lightweight it is. It barely draws power, so you may not care to turn it off at all. It boots in seconds and is ready for use in a snap. Still it is capable and works at par with Linux SBC solutions for audio applications, while costing a fraction of their price. Combined with proper Hi-Fi DAC you would not tell a difference to commercial devices standing side by side and costing much more.
Over last few years I see few amazing software products created to deliver audio on the ESP32, like squeezelite-esp32 or euphonium. Esparagus HiFi MediaLink is part of Esparagus family designed specifically to run these great pieces of software and bring a new life into aging audio equipment that most of us have at home, but do not use that much these days, since it is not working with Spotify and the family.
Features
MCU Core
- ESP32 Dual Core 32-bit LX6 microprocessor running at 240 MHz
- 8 MB of flash storage
- 8 MB of PSRAM
- CH340 Serial communication / Flashing chip
Audio capabilities
- PCM5100A 32bit Stereo DAC
- 2.1 VRMS Line level output
- 100 dB typical noise level
- Triple LP5907 3.3 V Ultra-Low-Noise LDO
Peripherals
- 0.96″, 128 x 64 px OLED Screen (optional)

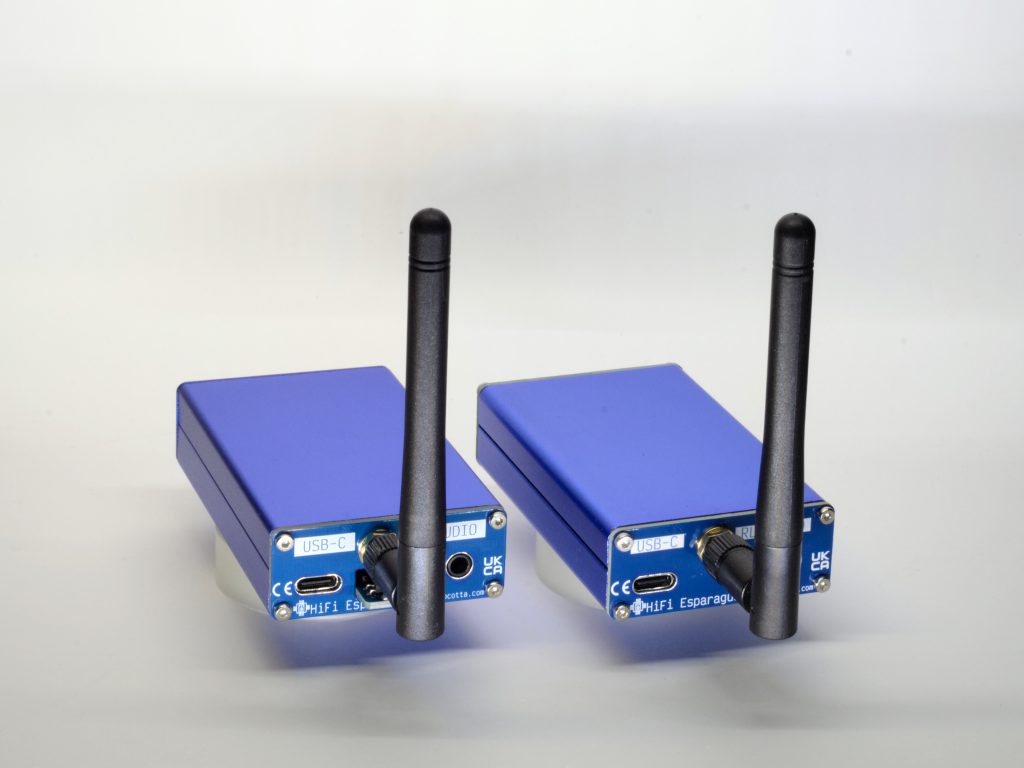

- External Wi-Fi Antenna
- WS2812B RGB LED (optional)
Other
- RESET and GPIO0 (FLASH) buttons

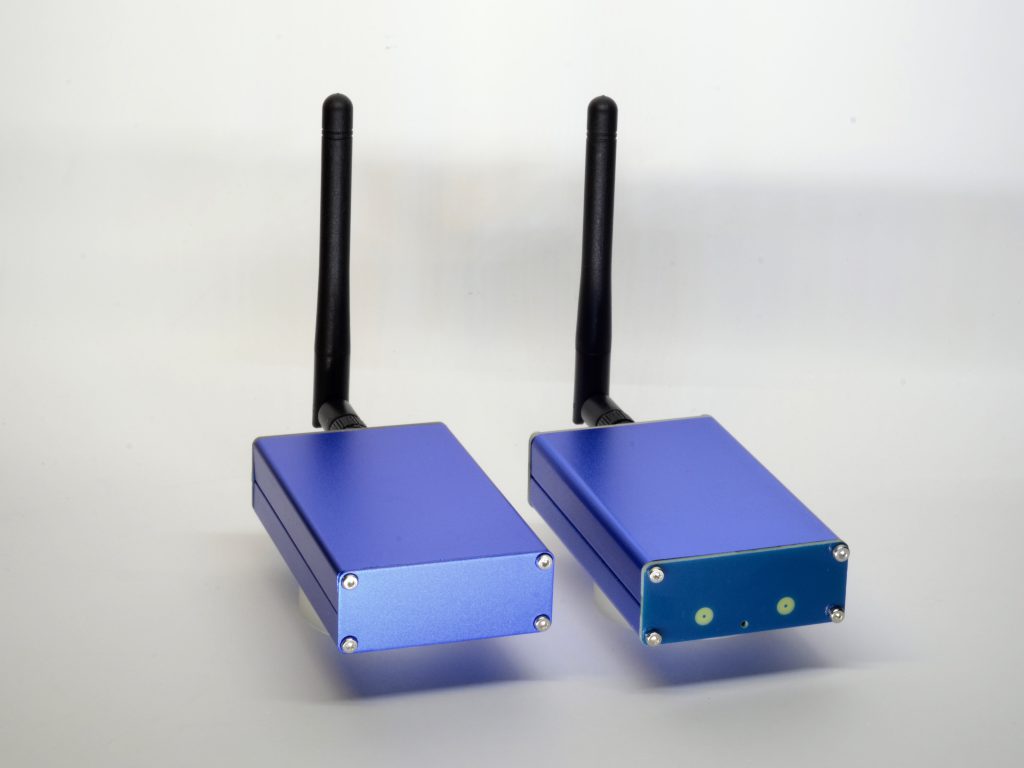

- 80 x 50 x 20 mm Aluminum case
Onboard PSRAM
Audio streaming require proper buffering to work, even with ESP32 500K of RAM it is a challenging task. For that reason most of the projects will require WROVER modules that have onboard PSRAM chip.
Esparagus HiFi MediaLink has 8MB PSRAM chip onboard, connected via high-speed SDIO interface. Any code using PSRAM with just work out-of-the box.
Firmware samples
In the software section two firmware examples provided.
Documentation
Both software and hardware documentation can be found on project’s Github. You can follow project progress at Hackaday
Where to buy
You may support our work by ordering this product at Tindie
